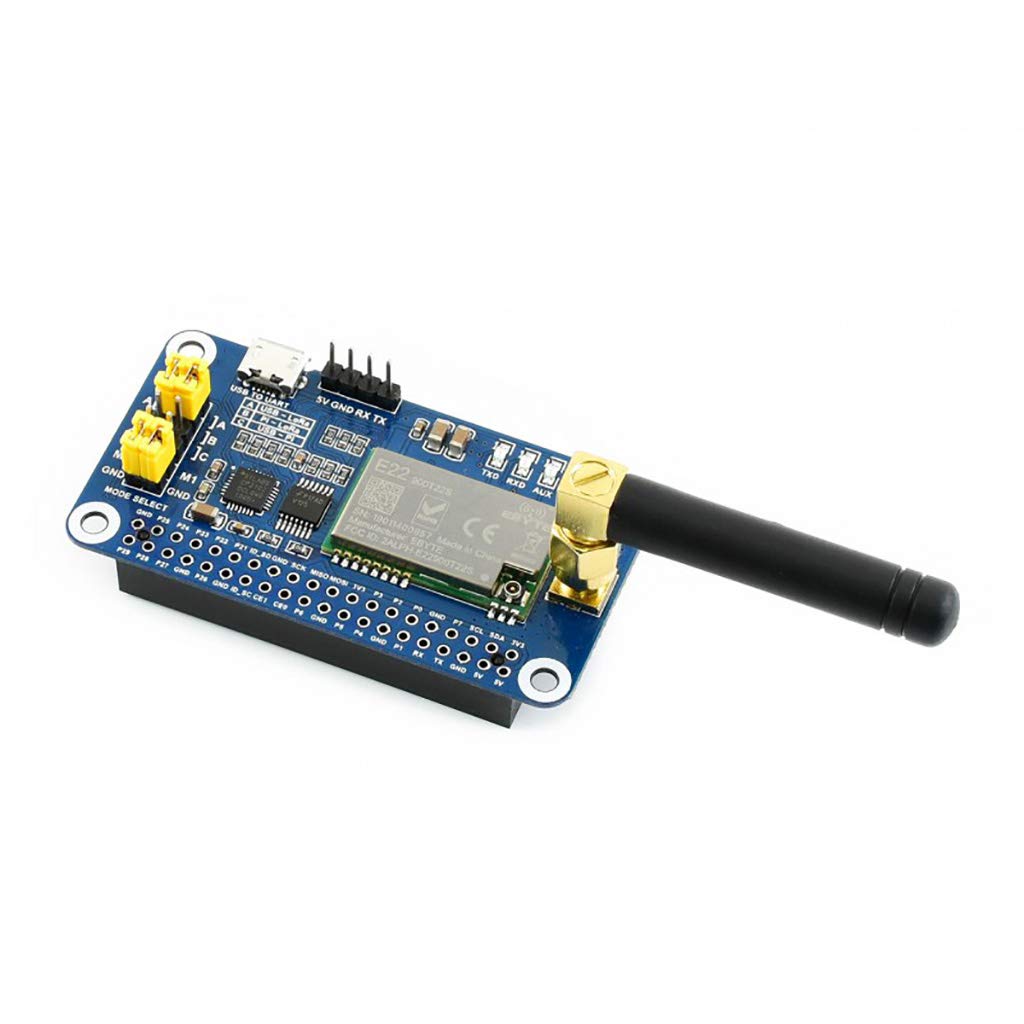

Coolwell Waveshare SX1262 LoRa HAT for Raspberry Pi Arduino STM32 81 Signal Channels 915MHz Frequency 5km Data Transmission

Overview

The SX1262 LoRa HAT (915MHz) is a high-performance long-range wireless communication module designed for Rasp-berry Pi, Ar-duino, and STM32 platforms. Based on the SX1262 LoRa chipset, it delivers
longer communication distance (up to 5km), higher transmission rates, lower power consumption, and stronger anti-interference performance than SX127X LoRa modules.

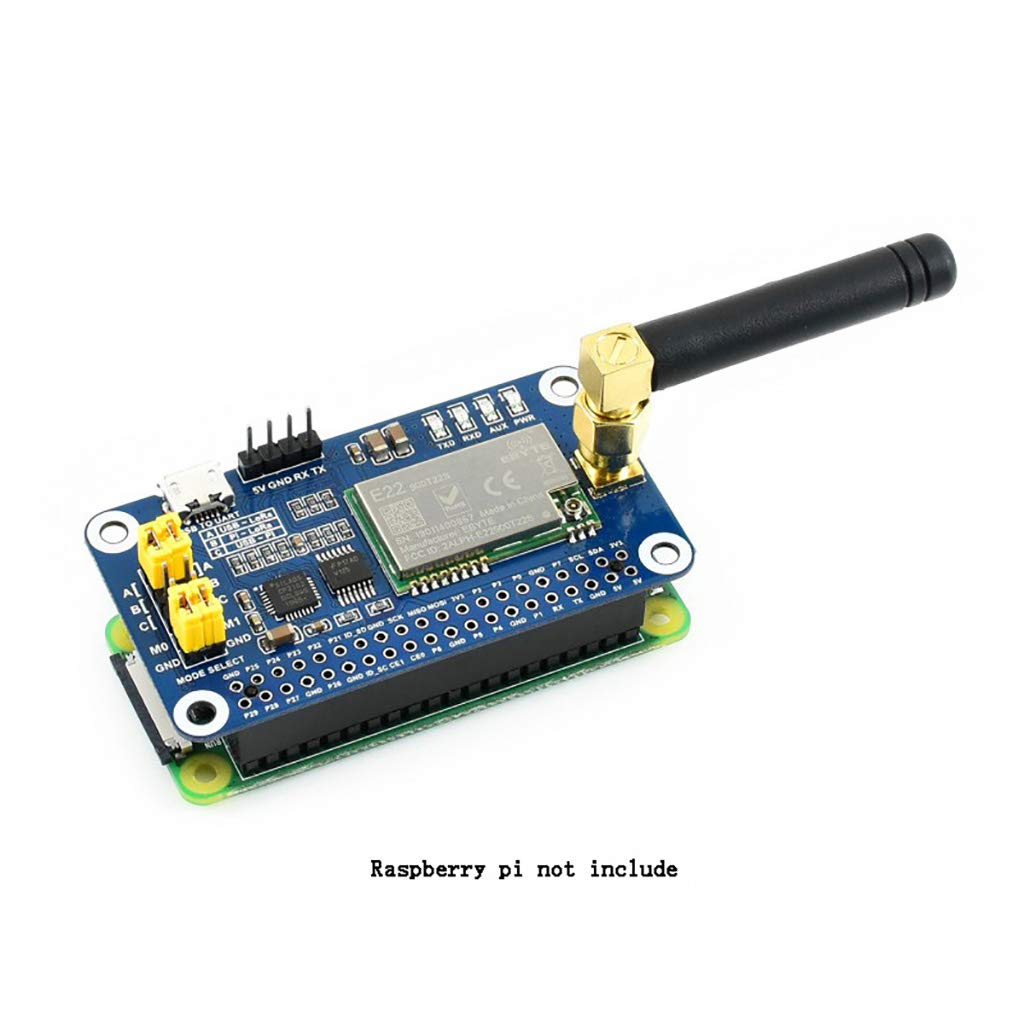

This LoRa HAT expansion board connects directly to the Rasp-berry Pi 40PIN GPIO header for easy integration. It also includes a UART interface for external host boards such as Ar-duino or STM32, and an
onboard CP2102 USB to UART converter for serial debugging and development.

With LoRa spread spectrum modulation technology, this board provides up to 81 available signal channels and supports auto multi-level repeating, allowing multi-node and multi-network LoRa deployments
across large areas. The low power consumption features, including deep sleep mode and Wake on Radio, make it ideal for battery-powered IoT devices.

Security and reliability are ensured with features such as customizable communication keys (not retrievable for safety), RSSI monitoring, and Listen-Before-Talk (LBT), which improves communication success even
in noisy environments.

Practical development features include 4 onboard LED indicators for easy status checking, support for wireless parameter configuration, fixed-point transmission, broadcasting, and signal monitoring. The board is
widely used in industrial control, smart home automation, remote sensing, and IoT data collection.

Backed with online documentation, open-source code examples, and technical support, the SX1262 LoRa HAT 915MHz is the ideal solution for developers and engineers building long-range IoT wireless communication
systems.

Package include

1. SX1262 915M LoRa HAT x1
2. 915MHz Antenna x1
3. USB type A plug to micro plug cable x1
4. Screws pack x1

• ? 915MHz SX1262 LoRa HAT for Raspberry Pi: This SX1262 LoRa HAT is designed for Rasp-berry Pi boards via 40PIN GPIO, supporting long-range wireless communication up to 5km in open environments.
• ? Advanced LoRa Modulation Technology: Adopts SX1262/SX1268 chipset with spread spectrum modulation, providing better anti-interference, higher transmission rate, and lower power consumption compared to SX127X LoRa modules.
• ?? Auto Repeating & Multi-Network Support: Supports automatic multi-level repeating, enabling ultra-long distance communication and multiple LoRa networks to coexist in the same region for IoT applications.
• ??? Secure & Reliable IoT Communication: Includes customizable communication keys, RSSI monitoring, and Listen-Before-Talk (LBT), ensuring data security, reliable transmission, and improved success rate under noisy environments.
• ???Fits Arduino & STM32 Debugging Tools Features CP2102 USB to UART converter, UART control interface, and online resources with example codes for Rasp-berry Pi, Ar-duino, and STM32, making IoT development easier.
