DROK DC 5V Power Converter, 5pcs Mini Voltage Buck Regulator DC 4.5-20V 12V 9V Step Down to 5V Reducer Transformer Board 3A 10W Adjustable Fixed Volt Output Step-Down Power Supply Stabilize

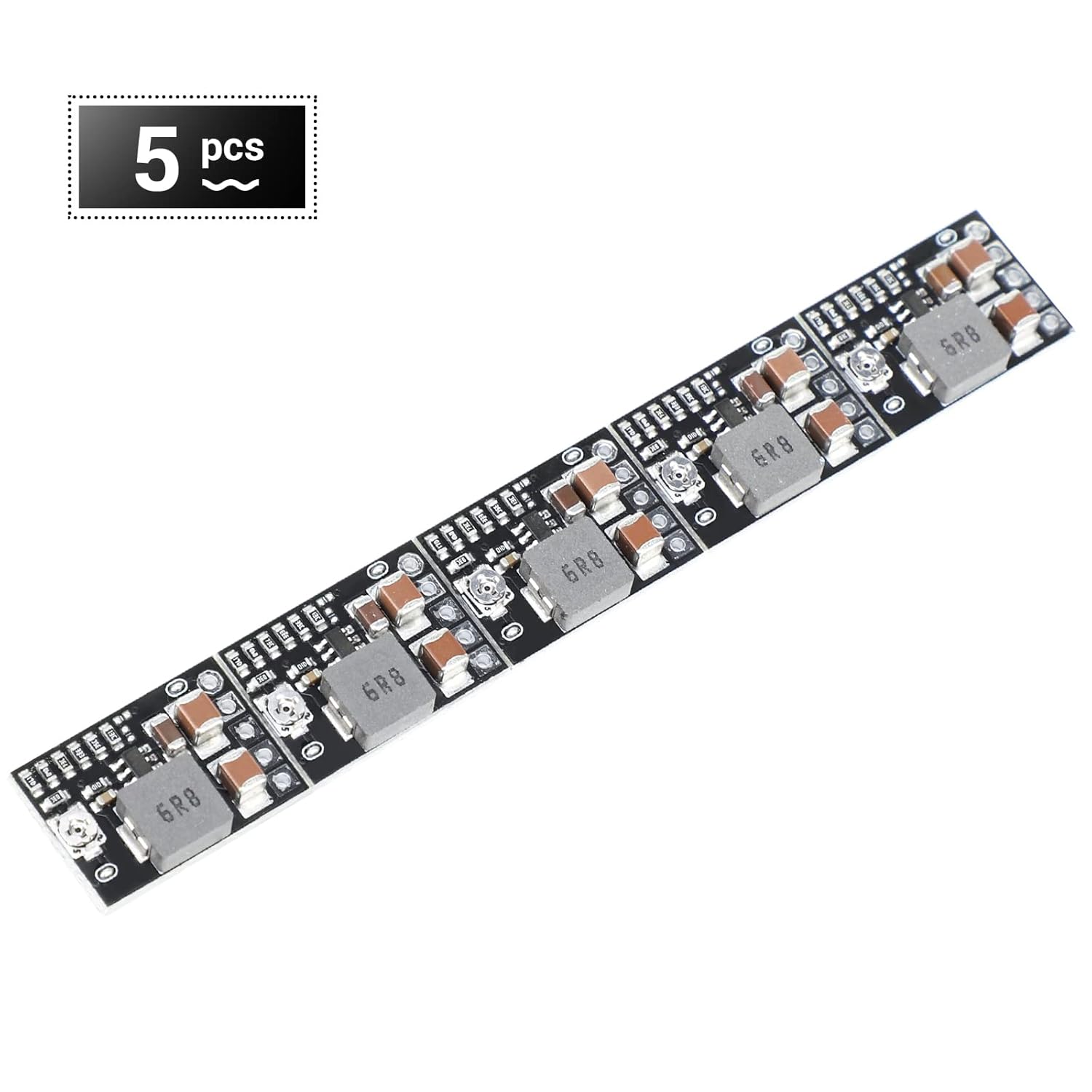

DROK DC 12V to 5V Buck Converter Module A Set of 5 Pcs Parameters Type: Non-isolated step-down module (synchronous rectification) Input voltage: DC 4.5-20V Output voltage: Integrated adjustable and fixed output, fixed output voltage can be selected on the back Adjustable range: 1-16V; Fixed voltage: 1.8V, 2.5V, 3.3V, 5V, 9V, 12V Output current: Max 3A (peak: 3A, long-term: within 2A) Power: 10W Conversion efficiency: Up to 97% (typical value: >90% when 12V turns to 5V 2A) Switching frequency: 800KHz Output ripple: typical value 20mV Working temperature: -40 to +85 (the higher the ambient temperature, the smaller the output power) Output overvoltage protection: None No-load current: <1 mA Load regulation rate: 2% Voltage adjustment rate: 2% Dynamic response speed: 5% 200uS Output short circuit protection: Yes, but please do not keep short circuit for a long time Input reverse connection protection: None Enable control: Yes, high level work, low level stop work, high level is 2-5V, low level is about 0V. Default internal with pull - up to input positive pole. Wiring method: Welding Input method: Welding Output method: Welding/pin header Welding hole spacing: 2.54 mm Package Includes: 5 x mini 5v regulator

Key features

• Parameter --- For DROK mini buck converter, Input voltage: DC 4.5-20V; Output voltage can be adjustable or fixed. Adjustable range: 1-16V; Fixed voltage: 1.8V, 2.5V, 3.3V, 5V, 9V, 12V; Output current: Max 3A (peak: 3A, long-term: within 2A); Power: 10W.
• High Efficiency --- Conversion efficiency: Up to 97% (typical value: >90% when step down 12V to 5V 2A).

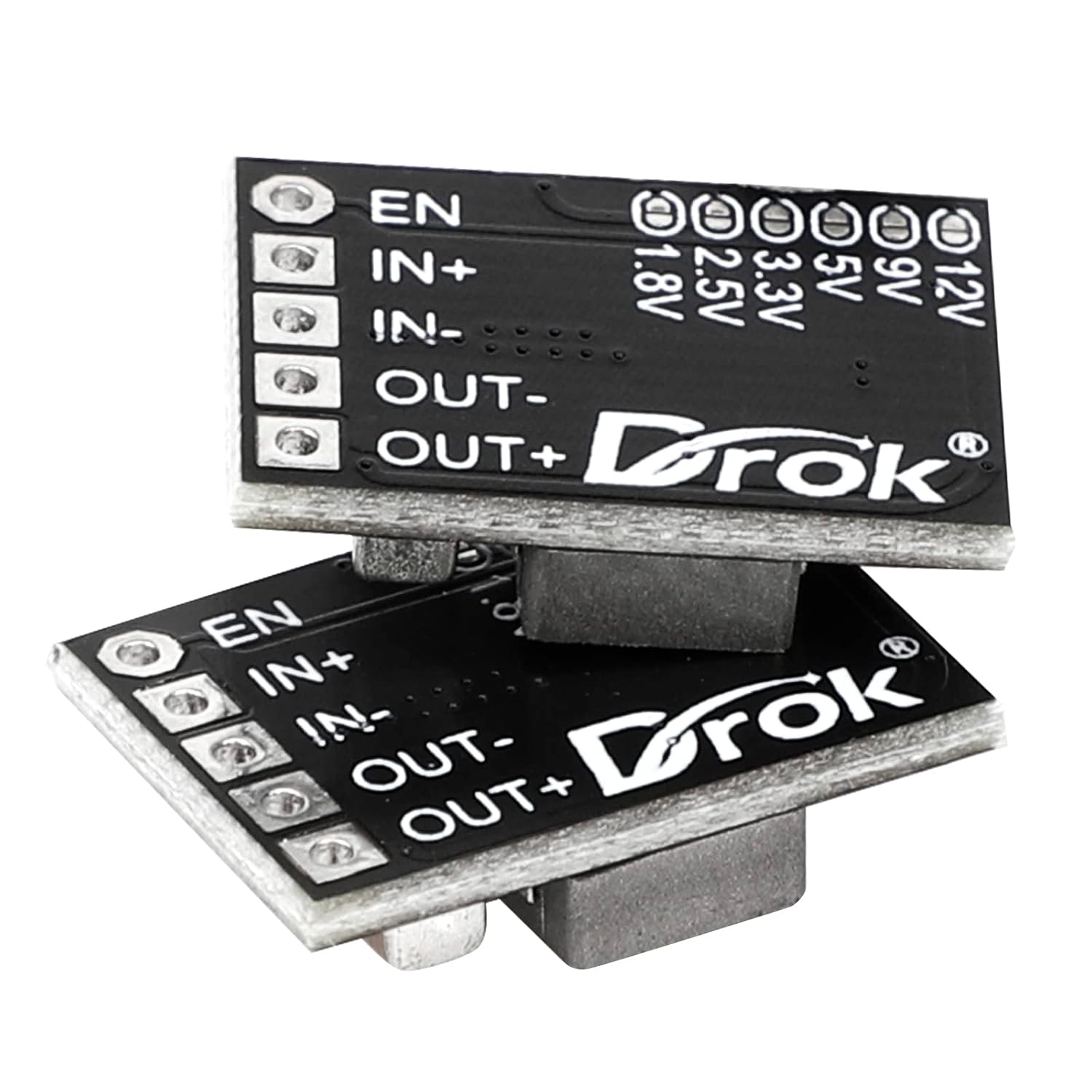

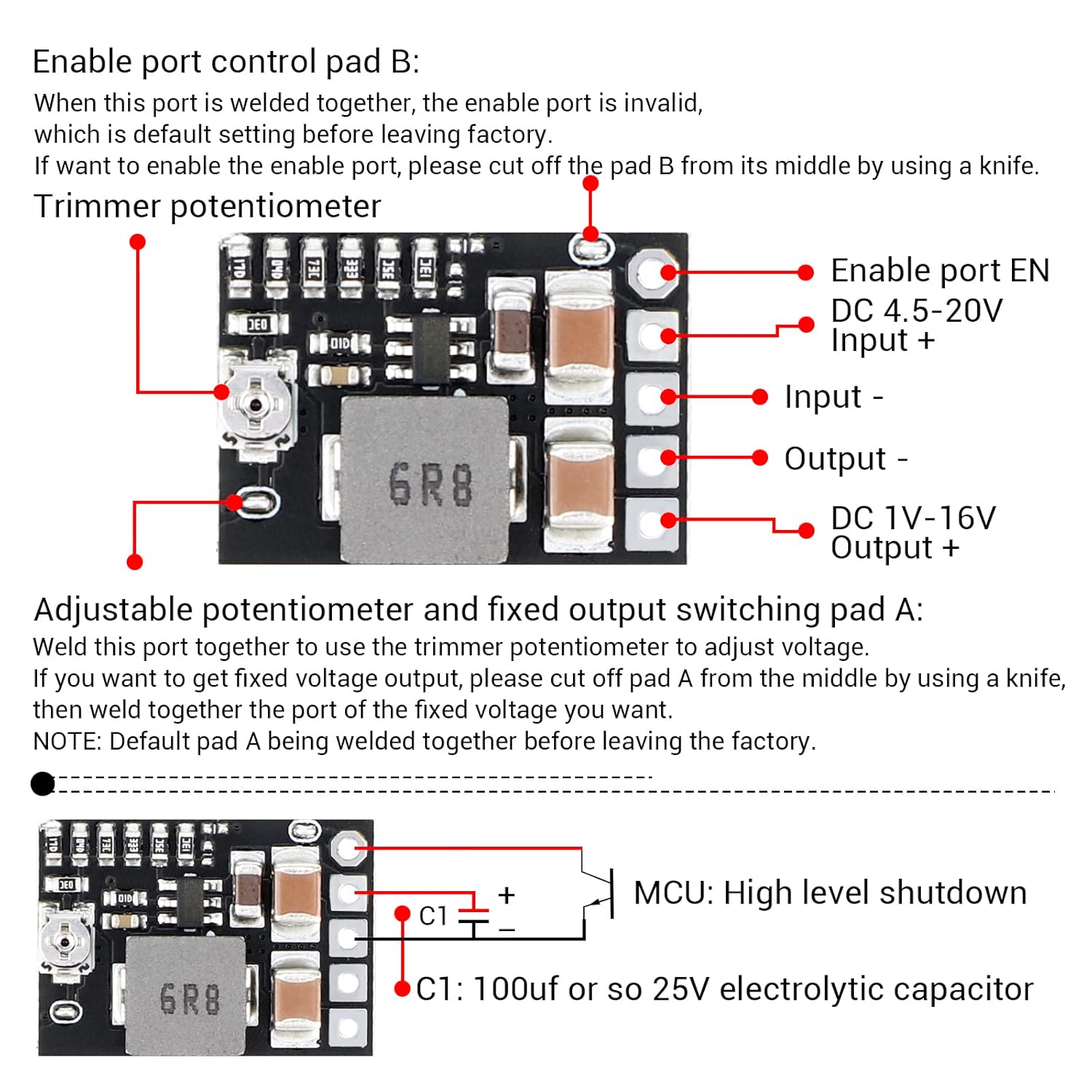

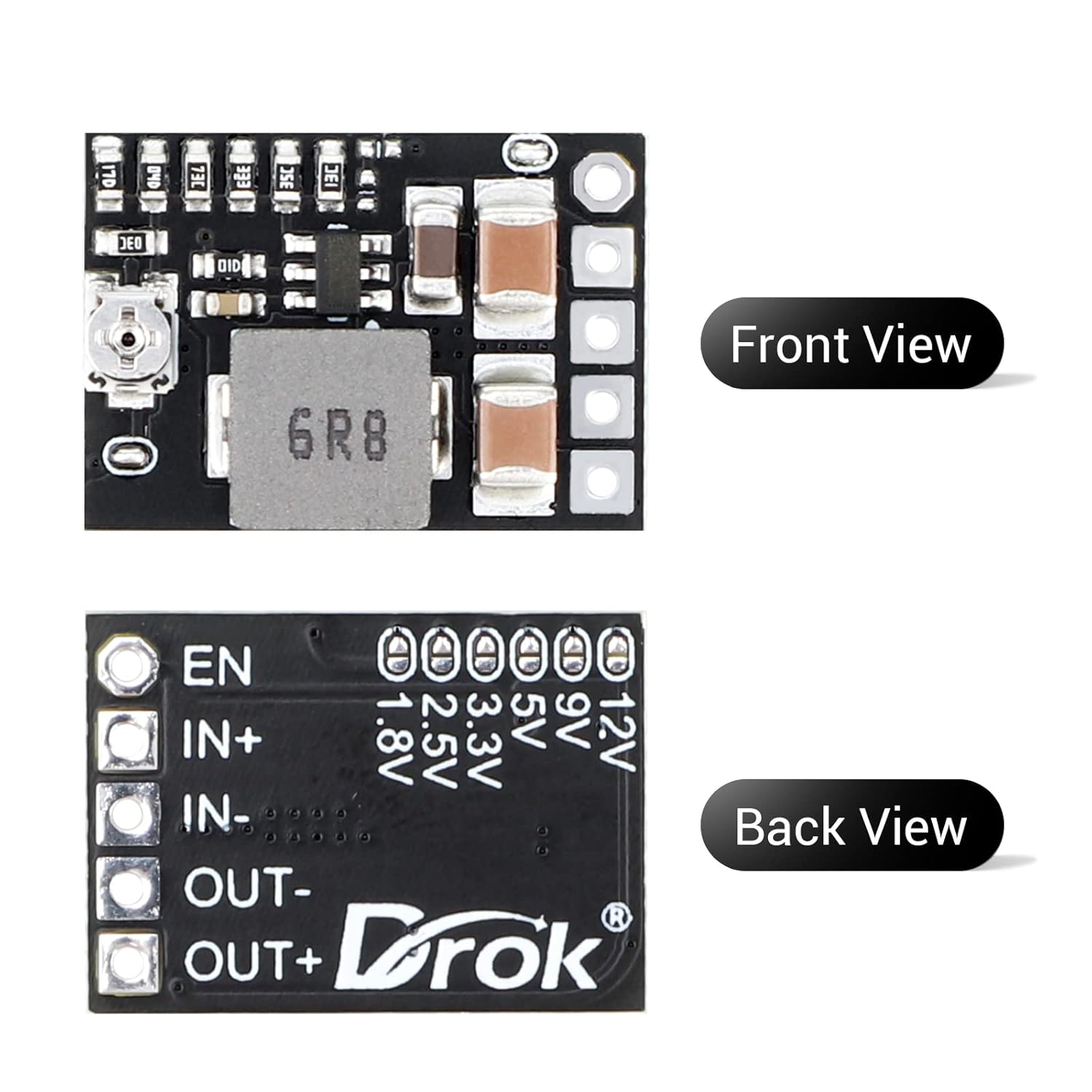

• Output Voltage Adjustable or Fixable --- These tiny 12v to 5v step down converters can be variable at output voltage. The small board is default to be used for output voltage adjustment. If you want to get fixed voltage output, you need to cut off the Pad A by using a sharp thing such as a knife then weld together the port of the fixed voltage you want.
• Protection and Enable Control --- Output short circuit protection, but please do not keep short circuit for a long time. The integrated enable port defaults the working mode and it will be off when it is at low electric level off, which bring a great convenience for users.

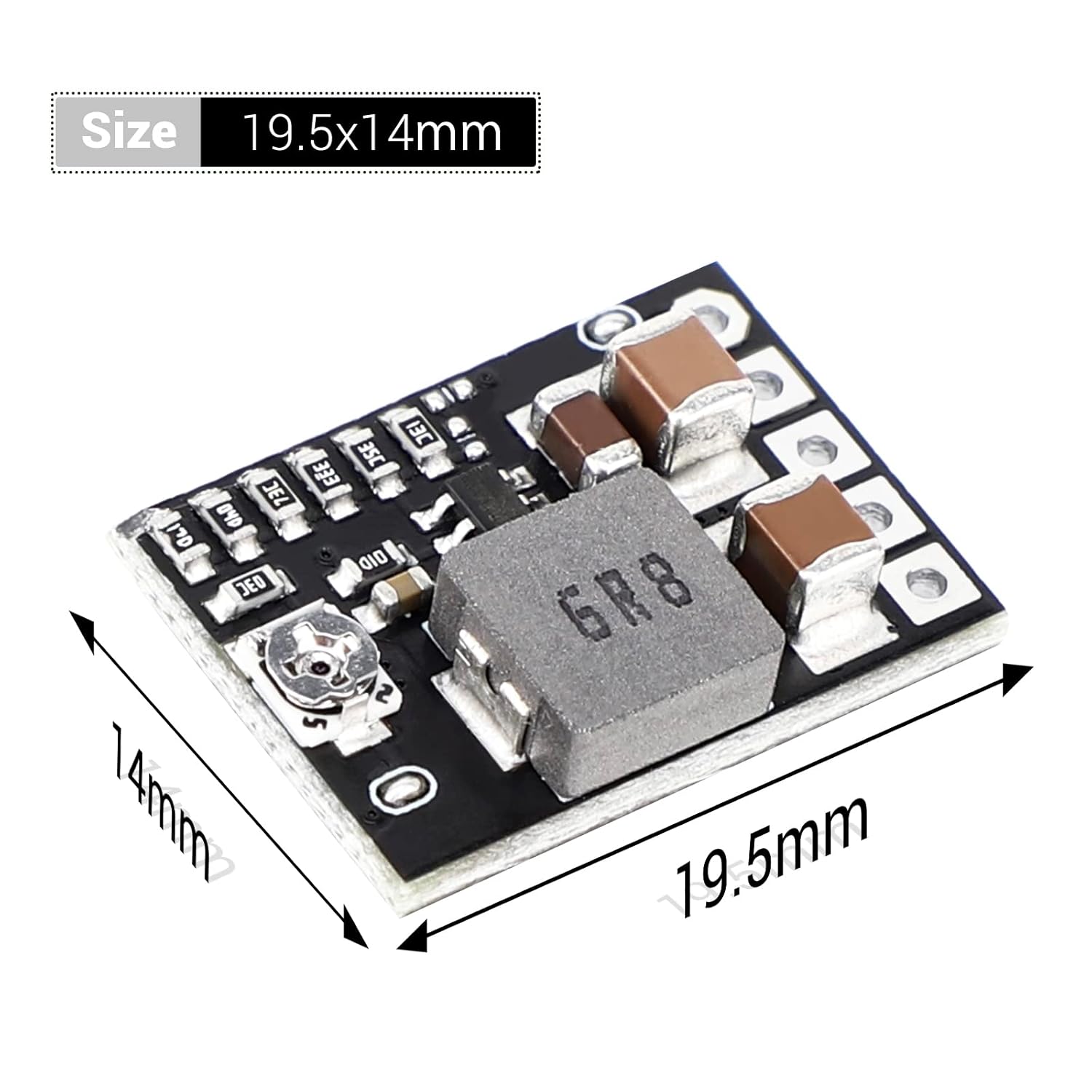

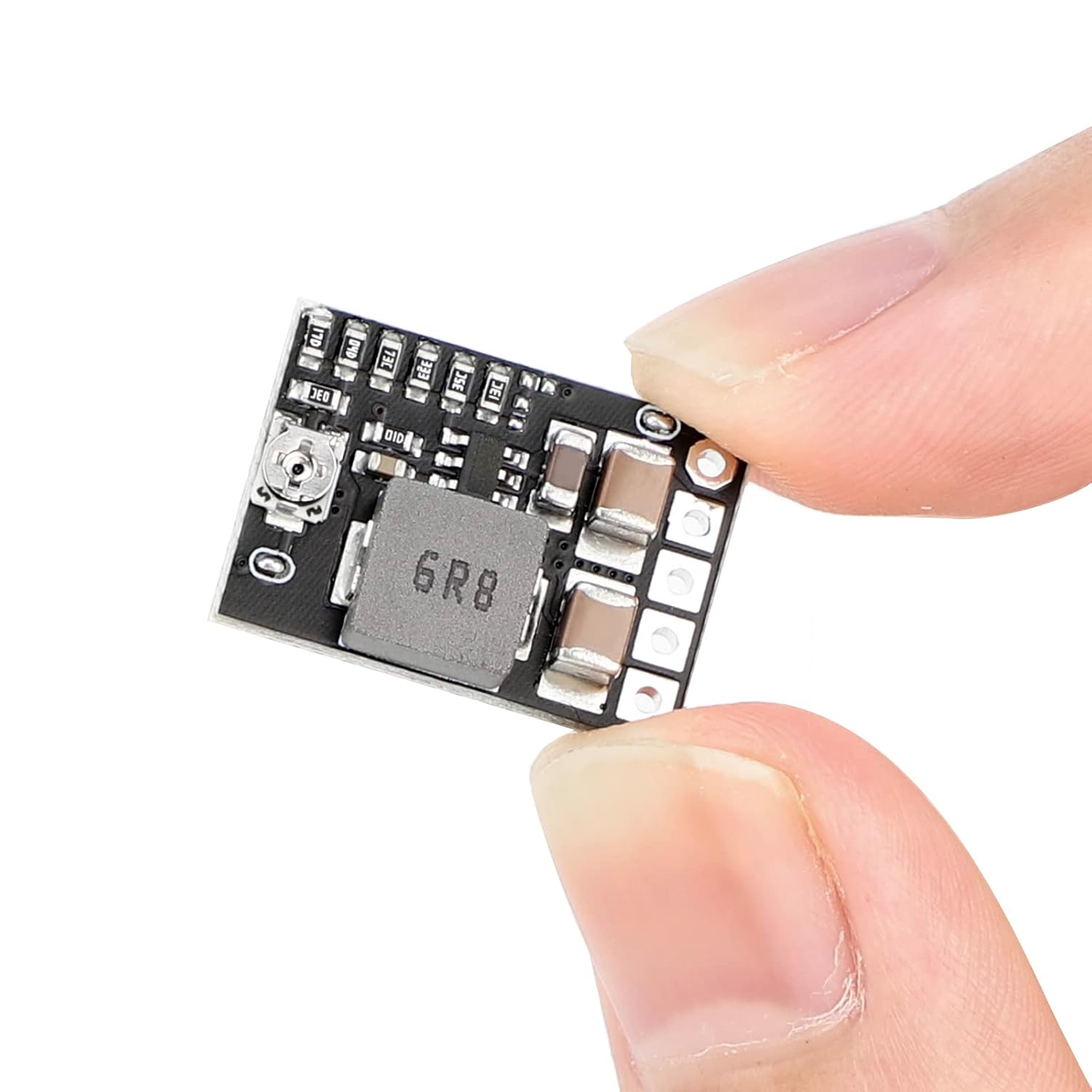

• NOTE --- This mini buck converter is really very tiny, much smaller than a 1-dollar coin, nearly a half of the coin.

Benefits

• Improves overall user experience
• Saves time with efficient operation
• Built for reliability and consistent output
• Easy integration into daily routines

Product details

DROK DC 5V Power Converter, 5pcs Mini Voltage Buck Regulator DC 4.5-20V 12V 9V Step Down to 5V Reducer Transformer Board 3A 10W Adjustable Fixed Volt Output Step-Down Power Supply Stabilize is crafted with attention to technology, materials, and build quality to ensure long lasting performance and dependable use.

How to use

1. Unbox the product and check all components
2. Follow basic setup instructions
3. Use as intended according to requirements
4. Clean and store properly after use

Ready to buy

Add the DROK DC 5V Power Converter, 5pcs Mini Voltage Buck Regulator DC 4.5-20V 12V 9V Step Down to 5V Reducer Transformer Board 3A 10W Adjustable Fixed Volt Output Step-Down Power Supply Stabilize to your cart today and enjoy quality, performance, and value you can trust.
