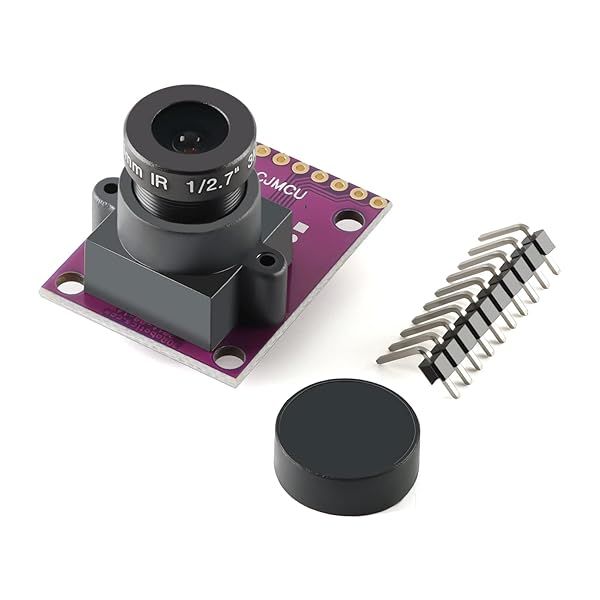

EC Buying ADNS-3080 Optical Flow Sensor Module Horizontal Movement Detector APM2.52 APM2.6 Optical Flow Detector Module Board

Description: The ADNS-3080 is a high-performance supplement to Avago Technologies' popular ADNS series optical mouse sensors The ADNS-3080 is based on a new and faster architecture with improved navigation capabilities. The sensor can sense the high-speed movement of the mouse, up to 40 inches per second, and the acceleration can reach 15g, thus improving the user's accuracy and fluency. The ADNS-3080, together with the ADNS-2120-001 fine tuning lens, the ADNS-2220-001 mounting clip and the HLMP-EG3E-xxxxx led, forms a complete and compact optical mouse tracking system. No moving parts, which means high reliability and less maintenance for end users. In addition, the accuracy does not require optical alignment, which is convenient for mass assembly The sensor is programmed via a four wire serial port via a register. It is packaged in a 20 pin staggered dual in-line package (DIP).

Key features

• Overview The ADNS-3080 is based on a new and faster architecture with improved navigation capabilities. The sensor can sense the high-speed movement of the mouse, up to 40 inches per second, and the acceleration can reach 15g, thus improving the user's accuracy and fluency.
• Features: The ADNS-3080 has high-speed motion detection up to 40 ips and 15 g, which greatly improves the new architecture of optical navigation technology, reaching a programmable frame rate of more than 6400 frames per second. SmartSpeed automatically adjusts the frame rate to obtain the best performance, with a serial port burst mode for fast data transmission. Available in 400 or 1600 cpi selectable resolution,3.3 volt power supply
• ADNS-3080 is based on optical navigation technology. It measures position changes optically to obtain continuous surface images and determines movement mathematically. It includes an image acquisition system signal processor. The external microcontroller reads information from the sensor serial port and converts the data into PS2 or USB signals before sending them to the host PC or game console.
• For best tracking performance, SROM is required to be loaded into ADNS-3080. This architecture enables the immediate adoption of new features and improved performance algorithms. The external program is supplied by Avago Technologies . On power-up and reset, the ADNS-3080 program is downloaded into volatile memory using the burst-mode procedure described in the Synchronous Serial Port section.
• Applications: The ADNS-3080 can be used in the following devices: game console and computer game mouse, desktop computer, workstation and portable computer mouse, trackball, integrated input device.

Benefits

• Enhances everyday usability
• Delivers consistent and reliable performance
• Built to support long term use
• Simple and practical design

Product details

EC Buying ADNS-3080 Optical Flow Sensor Module Horizontal Movement Detector APM2.52 APM2.6 Optical Flow Detector Module Board is manufactured using dependable materials and practical technology to ensure stable performance and durability.

How to use

1. Unbox the product and verify all components
2. Set up according to basic usage requirements
3. Operate the product as intended
4. Clean and store safely after use

Ready to buy

Add the EC Buying ADNS-3080 Optical Flow Sensor Module Horizontal Movement Detector APM2.52 APM2.6 Optical Flow Detector Module Board to your cart today and experience reliable quality and everyday value.
