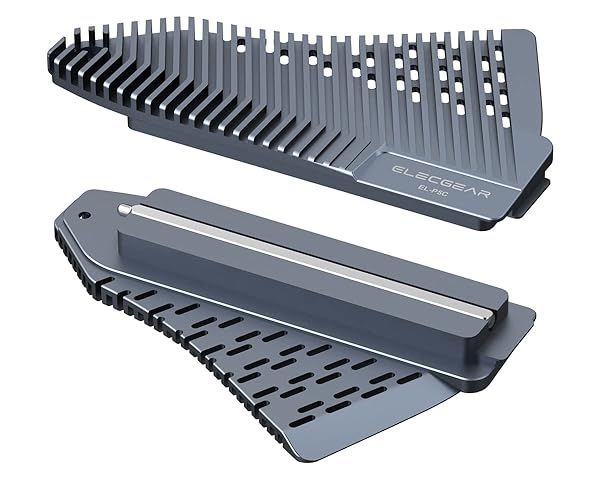

ElecGear PS5 NVMe SSD Heatsink Solid Aluminum Cooler for Playstation 5 Internal PCIe M.2 NVMe 4.0 Gaming Memory with Thermal Pads

?for original PS5 alone, ?not for Slim or Pro
? NVMe SSD Cooler Designed for PS5 Internal NVMe SSD
? A 5mm High-end Heat Pipe & Solid Aluminum Heatsink
? Snag Fit with the Middle Frame of PS5 Disc and Digital
? Delicate Utilization of PS5 Cooling Fan for being Silent
? A re-designed Mounting Post and Standard M.2 Screw
? Pre-divided Silicon Thermal Pads and Tool Kit Included

[Compatibility Note]:
?First PS5 Ultra HD CFI-10xxA, 11xxA, 12xxA
?First PS5 Digital CFI-10xxB, 11xxB, 12xxB
?Not for Slim models: CFI-2xxx
?Not for Pro models: CFI-7xxx

Brand: ElecGear
Model: EL-P5C
Material: Aluminum + Copper
Heat Pipe: D5x98mm
Color: Dark Grey
Surface Treatment: Anodic Oxidation
Pipe Treatment: Nickel Plated
Weight: 98gram
Dimension: 128x72x14mm

Packaging
1*ElecGear EL-P5C Heatsink
Re-designed SSD Fixing Screw Kit
1*Thermal Pad (EL-10, 1.0mm, 4.2W/m-k, Single-sided Blue)
10*Small Thermal Pads (EL-15X, 1.5mm, 3.6W/m-k, Pre-divided Grey)
1*PH0 Screwdriver

• [PS5 NVMe Heatsink] – Patented heat sink for ?1st PlayStation 5 (modeled CFI-1xxx) internal NVMe SSD. (Not for ?Slim or ?Pro). It features a heat pipe and a huge solid aluminum heatsink. The high performance comes from the numerous cooling fins and the delicate utilization of air circulation sucked by PS5 main cooling fan. The streamlined profile is a snag fit with the middle frame of PS5 chassis. The heatsink is the ultimate cooling solution to the heat management of extreme Gen4 gaming SSD
• [Heat Pipe and Thermal Pads] – A 5mm copper heatpipe seamlessly embedded in the lower aluminum deck. The passive design with no cooling fan is aiming for being totally silent. The heat produced by the SSD will be absorbed by the heat pipe and effectively conducted to the extensive aluminum fins. Two pieces pre-divided thermal pads included for excellent heat connection. 1.0mm and 1.5mm thickness option adapts to any NVMe memory
• [Improved Mounting Post] – It seems the leading maker Sony does not belong to M.2 SSD industry. We don’t think that the stock screws mount M.2 SSD appropriately in the memory compartment. ElecGear did it better with a re-designed fixing structure for your gaming SSD. The modified guide post, standard M.2 screw and even a PVC washer to adjust the height of SSD are included in the box
• [Compatibility Note] – Works with first PS5 Ultra HD and Digital (?CFI-1xxx models). Not for 2nd slim ?CFI-2000 models. Compatible with any standard NVMe M.2 solid state drive. Fully tested with WD Black SN850, Samsung 980 Pro and Rocket NVMe 4.0. It supports 2230, 2242, 2260, 2280 form factor and also works with 22110 in the future. Please be noticed: The SSD maker’s thin heatsink should be removed before installing, for example, Corsair-Force MP600 and ADATA XPG
• [What’s in Package] – 1*ElecGear EL-P5C Heatsink, Re-designed Fixing Screw Kit, 1*Thermal Pad (EL-10, 1.0mm, 4.2W/m-k, Single-sided Blue), 10*Small Thermal Pads (EL-15X, 1.5mm, 3.6W/m-k, Pre-divided Grey) and Screwdriver
