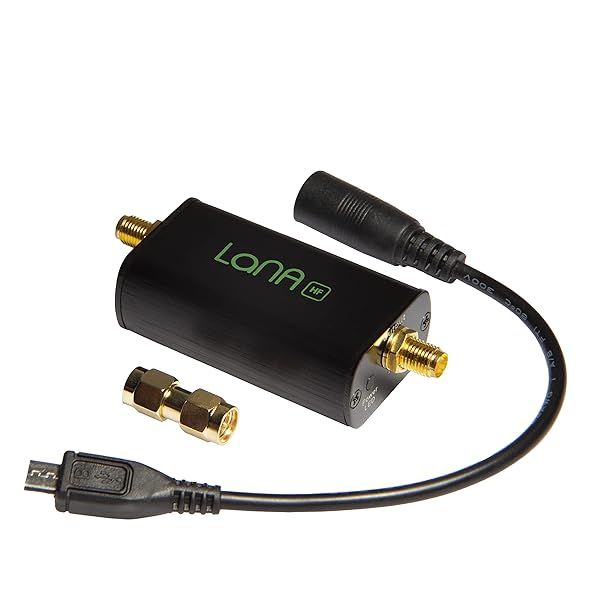

Lana HF v2 - Ultra Low-Noise LF, MF & HF Amplifier (LNA) Module for RF & Software Defined Radio (SDR). Wideband 50kHz-150MHz Frequency Capability with Bias Tee & USB Power Options

FOR FULL SPECIFICATIONS AND DETAILS, PLEASE REVIEW THE PRODUCT PAGE AT NOOELEC.COM LaNA HF is a very high performance, wideband and linear LNA module designed for SDR applications in the HF band and adjacent bands. Power consumption is less than 30mA. LaNA HF greatly improves performance when used with Ham It Up upconverters, direct sampling SDRs, and most HF-capable radios and rigs! Each module allows for 3 different power options, but you should only power with one option at any given time! The recommended power input through the SMA output port (for bias-tee capable SDRs like the NESDR SMArTee) is 4.5V-5V DC. Alternatively, if you don't have a bias-tee capable SDR, you can use the external power options--the microUSB port, or the power input header. The recommended external power input is 4.0V-5.5V DC. Though there is protection circuitry on LaNA HF for overvoltage conditions--and voltages of up to 12V DC should still work and will not damage the device--it is not recommended for long-term usage. Kindly note that damage resulting from overvoltage conditions would not be covered under the standard warranty. Each LaNA HF module has an EMI shield to protect the sensitive circuitry from external interference and is fully ESD-protected. LaNA HF also has an RF limiter at the input port to protect the amplifier from very high power external signals.

Key features

• A wideband, high-performance, high-linearity LNA module designed specifically for HF applications
• High gain, very low noise figure, and very low power consumption of <30mA
• Can be powered through bias tee (3.3V-5V), USB power, or DC power via power header
• Made in North America. 2 year warranty!
• For more information review the product page or datasheet: https://www.nooelec.com/datasheets/100838

Benefits

• Enhances everyday usability
• Delivers consistent and reliable performance
• Built to support long term use
• Simple and practical design

Product details

Lana HF v2 - Ultra Low-Noise LF, MF & HF Amplifier (LNA) Module for RF & Software Defined Radio (SDR). Wideband 50kHz-150MHz Frequency Capability with Bias Tee & USB Power Options is manufactured using dependable materials and practical technology to ensure stable performance and durability.

How to use

1. Unbox the product and verify all components
2. Set up according to basic usage requirements
3. Operate the product as intended
4. Clean and store safely after use

Ready to buy

Add the Lana HF v2 - Ultra Low-Noise LF, MF & HF Amplifier (LNA) Module for RF & Software Defined Radio (SDR). Wideband 50kHz-150MHz Frequency Capability with Bias Tee & USB Power Options to your cart today and experience reliable quality and everyday value.
