Sipeed M3AXPI 2GB AI Linux Single Board Computer with Quad-core CPU and Gigabit Ethernet for AIoT Edge Computing and Python Programming

-Specification-
CPU: Quad-A7 @ 1.0 Ghz (Quad Core A7)
NPU: 14.4Tops@int4, 3.6Tops@int8
ISP: 4K@30fps
Codec format: H.264, H.265
Video encoding: 4K@30fps
Video decoding: 1080P@60fps
Ethernet: Ethernet supporting dual RGMII / RMII interface mode
Display output: MIPI DSI 4 Lane, up to 4K@30FPS
DRAM: 2GB LPDDR4X 3733Mhz
Storage: Optional 16GB EMMC (default is TF card boot)
IO lead-out: DDR4 SODIMM 260P gold finger full IO lead-out
Camera input: (default single camera) up to 3 cameras: 1 MIPI4-LANE+2 MIPI2-LANE
Screen output: Support up to 4-LANE MIPI DSI screen
SD slot: Boot from SD card by default
Recording input: Two MEMS MICs onboard support dual microphone noise reduction
Audio output: 3.5MM headphone jack, support stereo input and MIC input
Network interface: support Gigabit Ethernet (ETH) and 2.4GHZ WI-FI onboard antenna
USB interface: 1xUSB2.0HS supports OTG or HOST function, 1xUSB-UART system serial port
Other resources: 1x user button, 3x system button, 1xRTC clock, 2xLED
External interface: Lead out CJTAG, you can connect to the corresponding debugger by yourself, lead out 2x12 pin headers, 4 M2.5 screw positioning holes

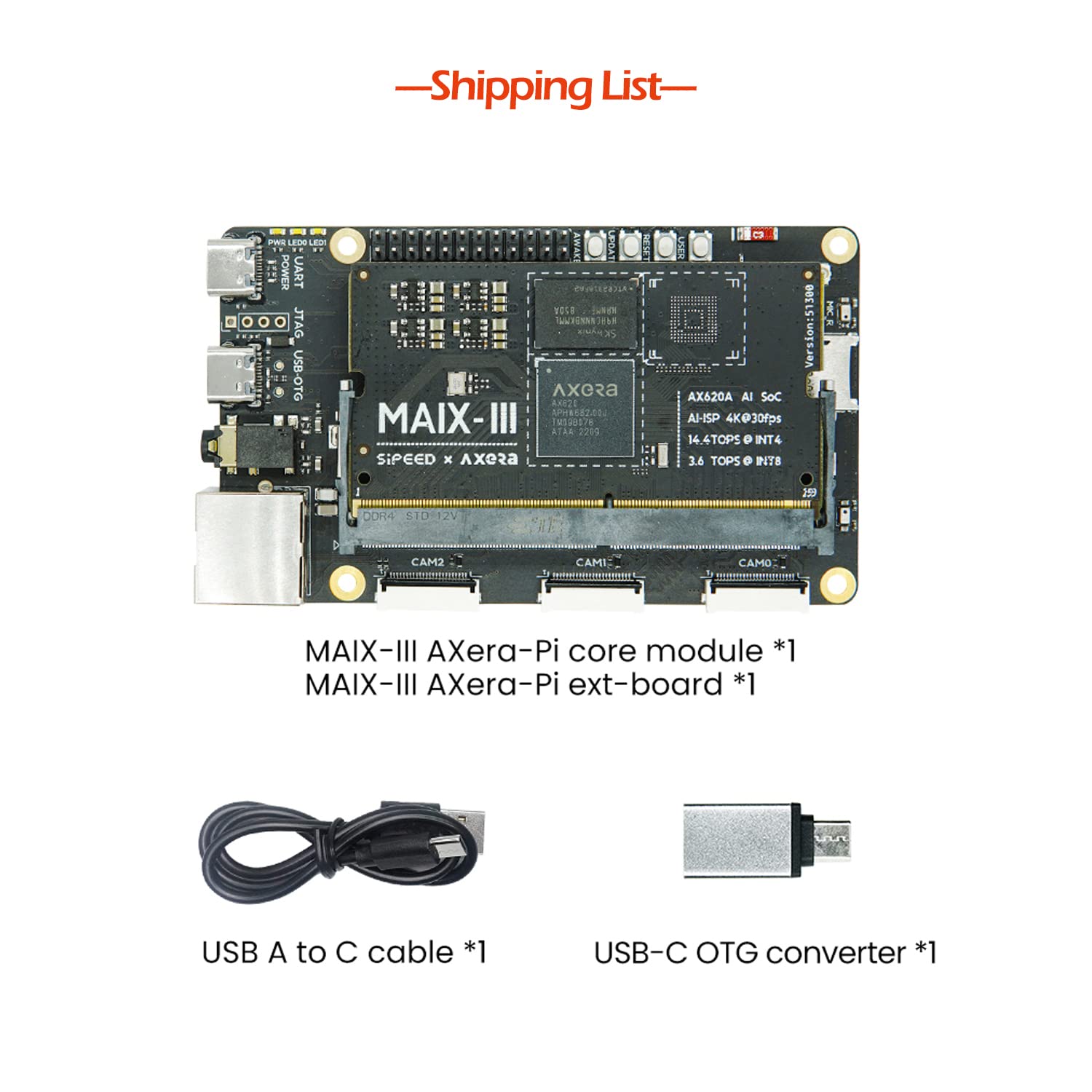

-Package Content-
1 x Sipeed MAIX-Ill AXera-Pi core module
1 x Sipeed MAIX-II AXera-Pi ext-board
1 x USB A to C cable
1 x USB-COTG converter
-Technical Support- Open source organization: "github.com/sipeed" AI Service: "maixhub.com/welcome" Please click "WayPonDEV" and ask a question or monica#smartfire.cn (f------>@) skype: monica_9122. Please leave the message in our forum by forum.youyeetoo.com/.

• [AX620A Soc] Sipeed M3AXPI Linux single board computer with high computing power, high energy efficiency ratio and low power consumption AI SoC chip, the chip integrates a quad-core Cortex A7 @ 1Ghz CPU, has a high computing power NPU with 3.6TOPs@INT8, supports 4K@30fps ISP, and supports H.264 , H.265 encoded VPU.
• [Excellent Storage ] Sipeed M3AXPI Linux single board computer support 32bit LPDDR4x 2GB RAM, EMMC v5.1 / SPI Flash, support up to 6 channels of MIPI input, support up to 4 channels of work at the same time, support multiple sub-streams, 1 channel Gigabit Ethernet, 1 channel USB2.0, 2 channels MIPI DSI /CSI output.
• [Multi-interface function] Sipeed M3AXPI Linux single board computer support Gigabit Ethernet (ETH) and 2.4GHZ WI-FI onboard antenna; two MEMS MICs onboard support dual microphone noise reduction; 1 x USB2.0HS, support OTG or HOST function, 1 x USB -UART system serial port; lead out CJTAG, you can connect to the corresponding debugger by yourself, 2 x 12 pin headers, 4 x M2.5.

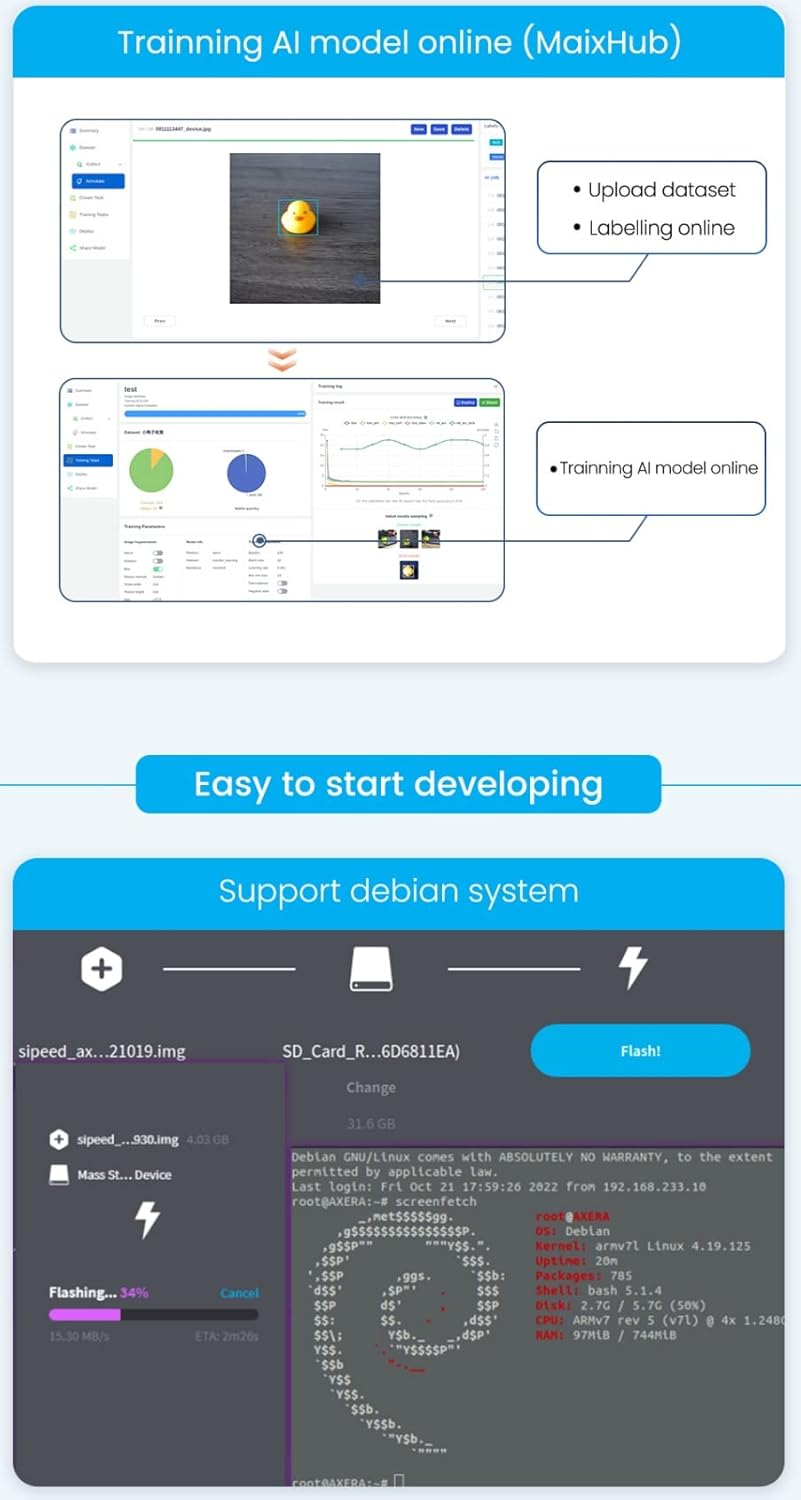

• [Support Python Programming] The debian11 Linux system supports SD card to start the DD burning system, which is convenient for users to get started out of the box, and supports Python API programming and AIoT Edge computing to develop AI applications.
• [Open BSP SDK Source Code] Sipeed M3AXPI Linux single board computer is providing various development source codes, provide API development documents, SDK development methods and other instructions.
