SparkFun 9DoF IMU Breakout ICM-20948: Low Power 9-Axis Motion Tracking with I2C/SPI & Qwiic Connection

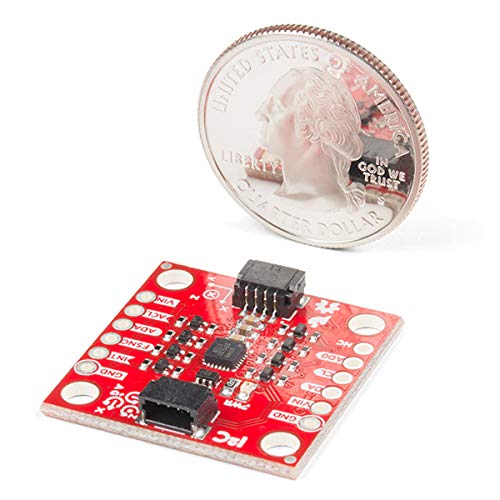

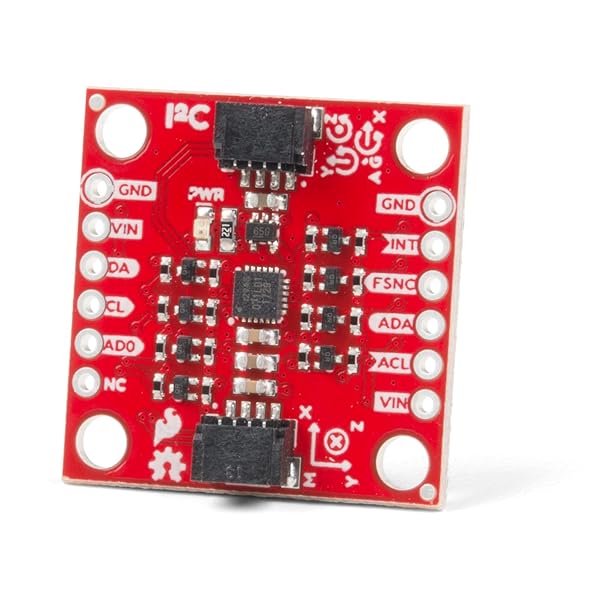

The SparkFun 9DoF IMU Breakout incorporates all the amazing features of Invensense's ICM-20948 into a Qwiic-enabled breakout board complete with a logic shifter and broken out GPIO pins for all your motion sensing needs. The ICM-20948 itself is an extremely low powered, I2C and SPI enabled 9-axis motion tracking device that is ideally suited for smartphones, tablets, wearable sensors, and IoT applications. Utilizing our handy Qwiic system, no soldering is required to connect it to the rest of your system. However, we still have broken out 0.1"-spaced pins in case you prefer to use a breadboard.

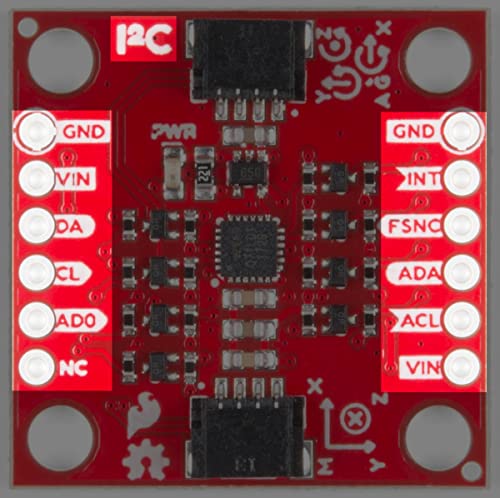

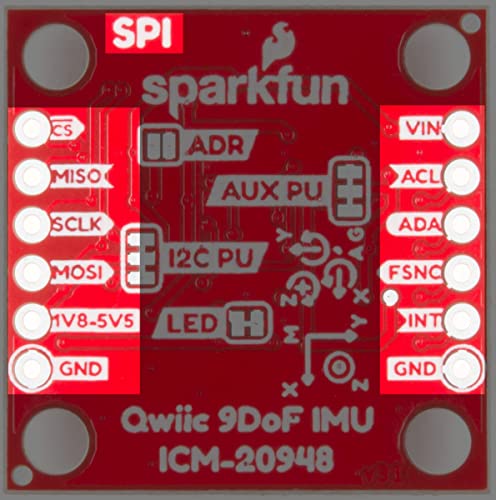

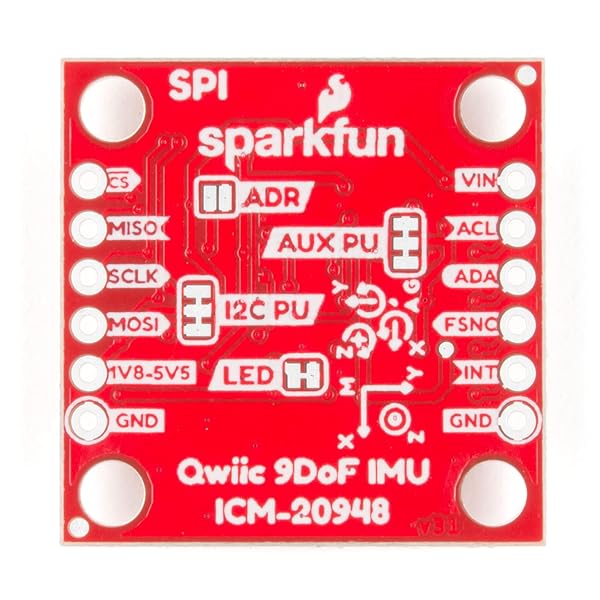

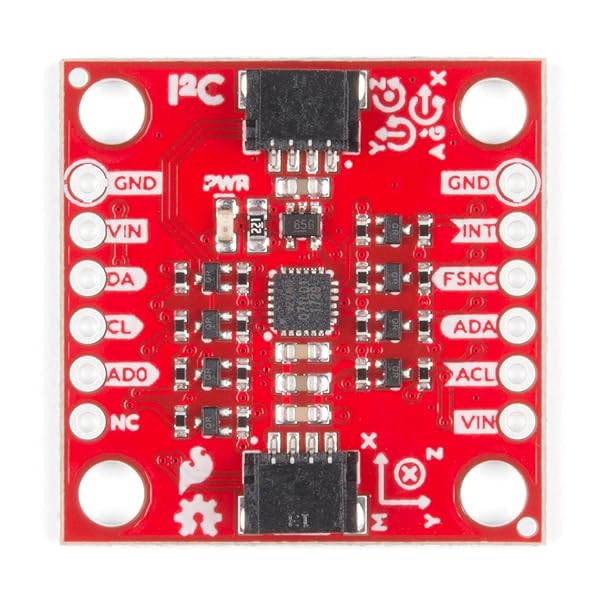

In addition to the 3-Axis Gyroscope with four selectable ranges, 3-Axis Accelerometer, again with four selectable ranges, and 3-axis magnetometer with an FSR to ±4900µT, the ICM-20948 also includes a Digital Motion Processor that offloads the computation of motion sensing algorithms from the detectors, allowing optimal performance of the sensors. We've also broken out all the ICM-20948 pin functionality to GPIO and labeled them I2C on the front, SPI on the back for ease of identification.

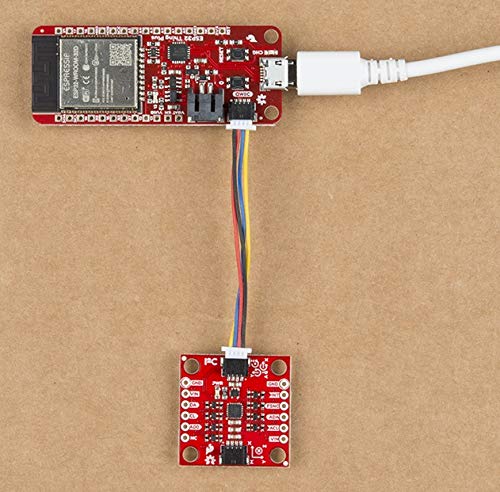

The SparkFun Qwiic Connect System is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.
I2C at up to 100 kHz (standard-mode) or up to 400 kHz (fast-mode) or SPI at up to 7 MHz for communication with registers
I2C Address: 0x69 (0x68 with Jumper)

• 9DoF IMU Breakout: This breakout board is Qwiic enabled, complete with a logic shifter and broken out GPIO pins for all motion sensing needs
• Features: 1.95 V to 3.6 V supply voltage, Triple-axis MEMS gyroscope, user-programmable full-scale range ±250 dps to ±2000 dps, Triple-axis MEMS accelerometer programmable full scale range from ±2g to 16g, Triple-axis silicon monolithic Hall-effect magnetic sensor with full scale measurement range
• 3-Axis Gyroscope, 3-Axis Accelerometer and a 3-axis magnetometer The gyroscope and accelerometer both have four selectable ranges, and the magnetometer with a FSR to ±4900µT
• The breakout also includes a Digital Motion Processor for offloading the computation of motion sensing algorithms and allowing optimal performance of the sensors, Broken out ICM-20948 pin: For increased functionality to GPIO, we’ve also labled them I2C on the front, SPI on the back for ease of identification
• Note : The I2C address of the ICM-20948 is 0x69 and is jumper selectable to 0x68. A multiplexer/Mux is required to communicate to multiple ICM-20948 sensors on a single bus. If you need to use more than one ICM-20948 sensor consider using the Qwiic Mux Breakout.
