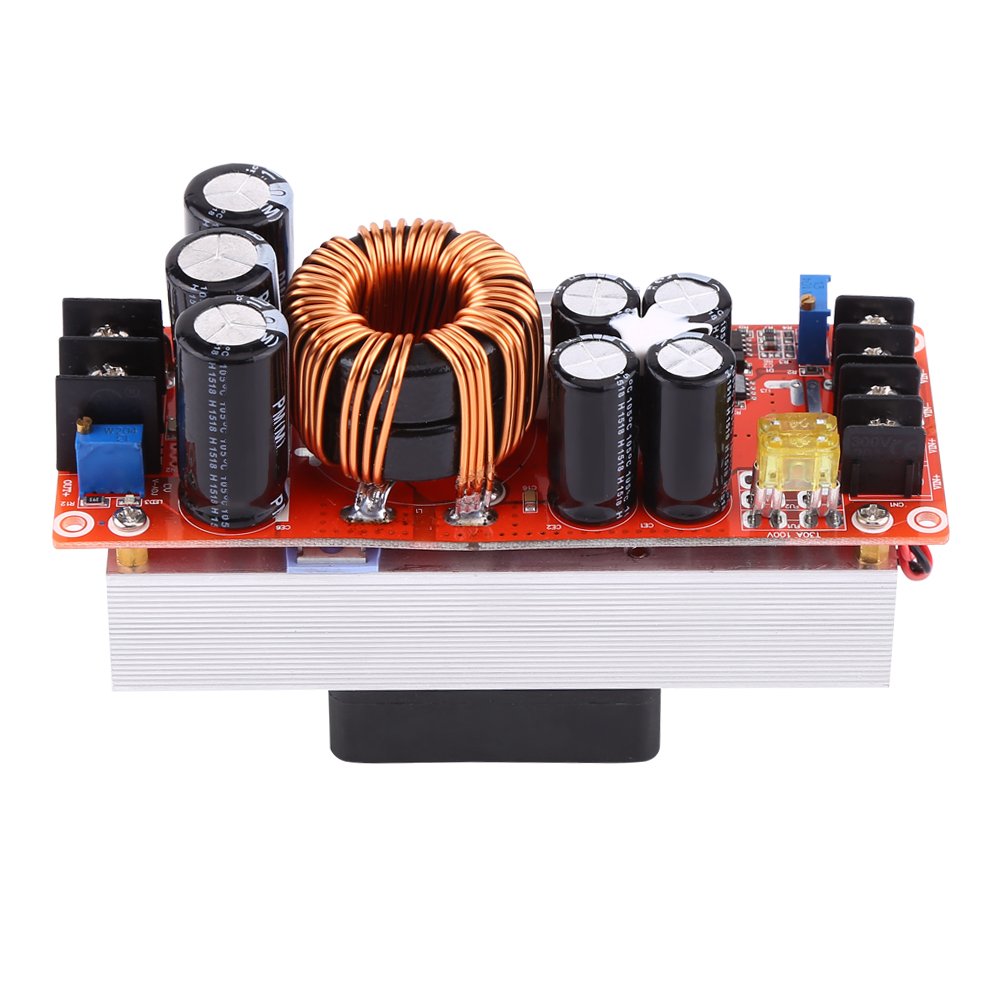

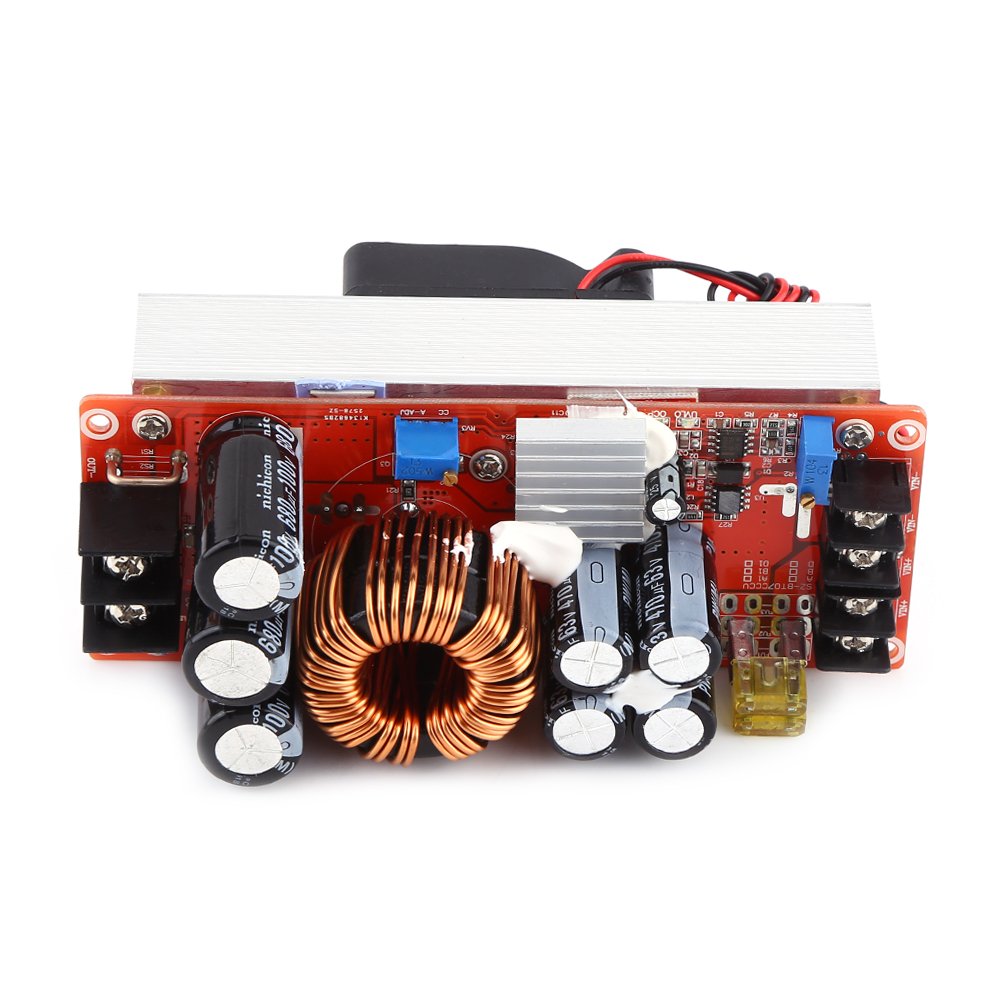

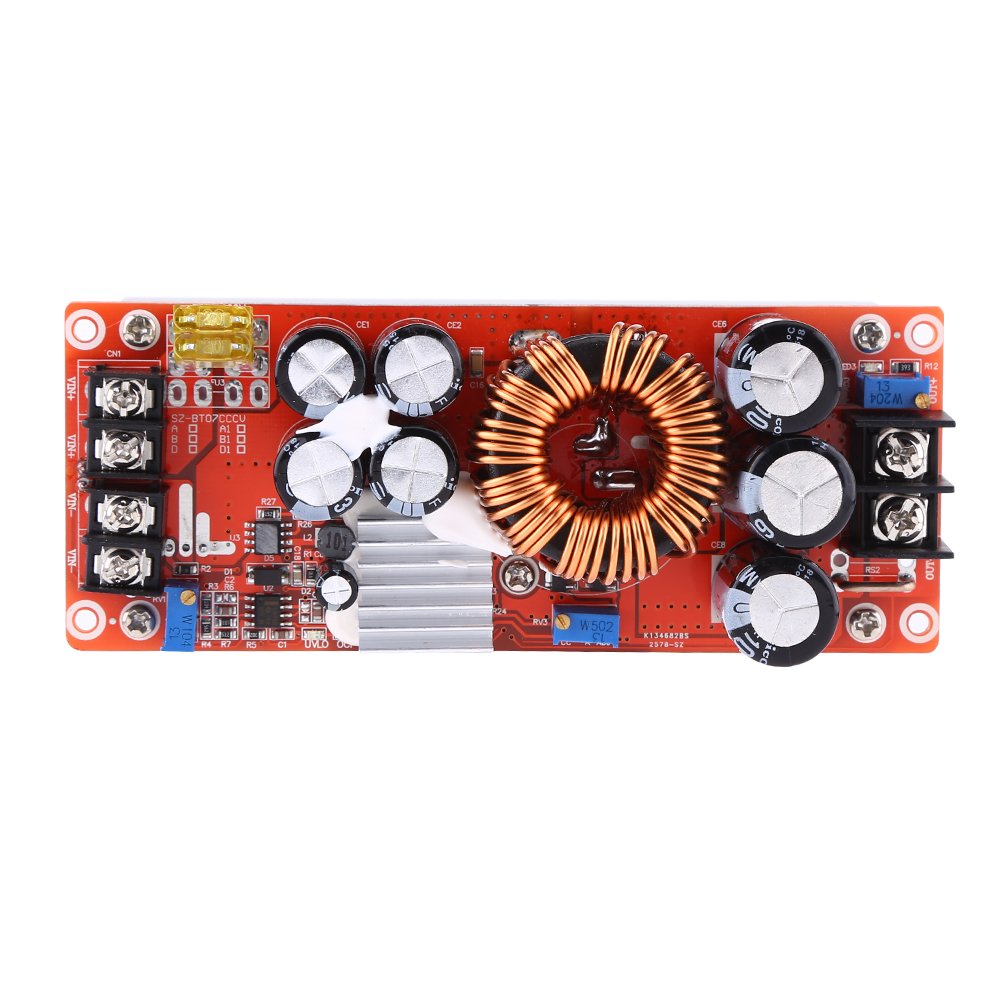

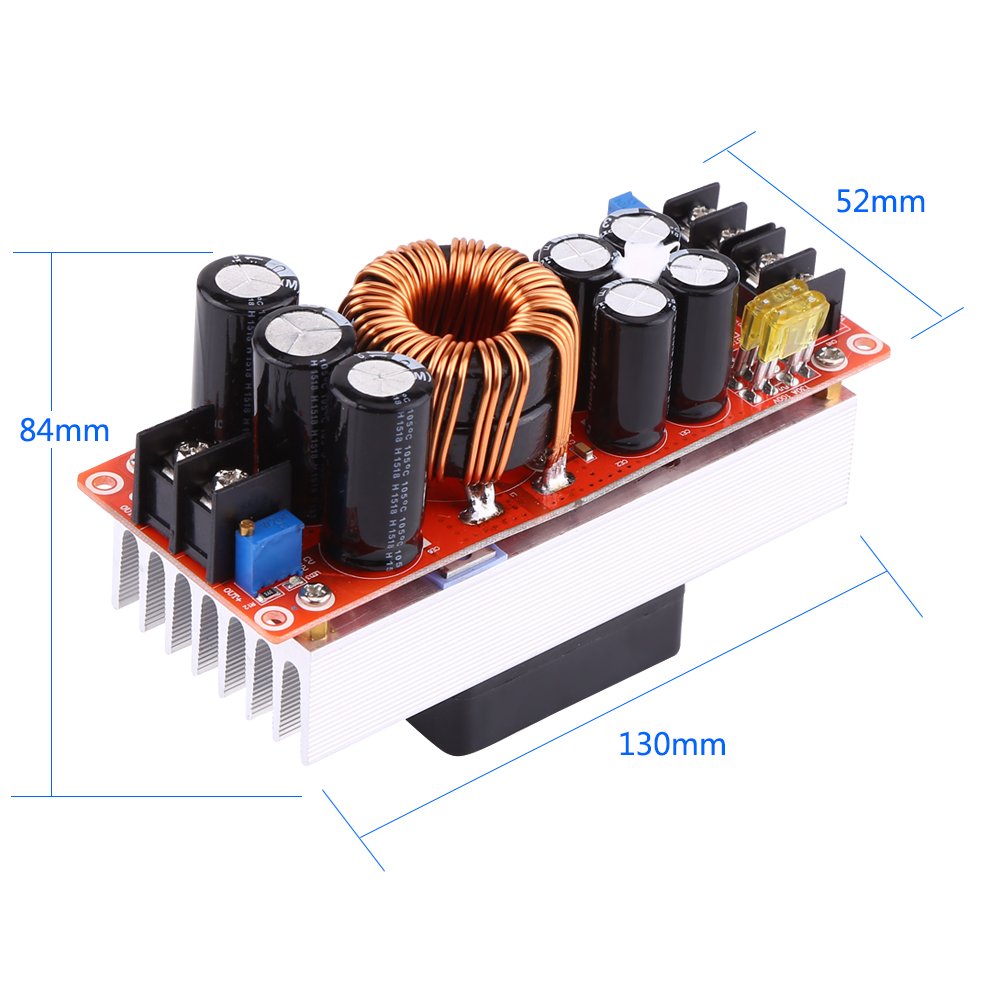

1500W 30A DC-DC Boost Converter, Step-up Power Module Voltage Regulator Input Voltage DC10V-60V to 12V to 90V Output Voltage for Big Power LED, Motors

Technical data: Type: Non-isolated step-up module (BOOST) Input voltage: DC10V to 60V . input current: 30 A (input voltage 10 V to 30 V) 25A (input voltage 31 V to 60 V) Quiescent current: 15 mA (increases when 12 V is converted to 20 V) Output voltage: 12 V to 90 V (adjustable, standard is 19 V) . Output current: 20A (related to the input and output voltage difference, The greater the voltage difference, the smaller the output current. Please improve heat dissipation if the current is 15 A. Constant current range: 0.8 A to 20 A (+/- 0.3 A) Reverse Input : Yes (150A MOS) Low voltage : Yes (V8 to 50 V adjustable, self-recovery) Operating temperature: - 40 C to +85 C (if the temperature is too high, please improve the heat dissipation) Frequency: 150 kHz conversion Efficiency: 92% to 97% (efficiency refers to the input/output voltage, Current and voltage difference. The smaller the difference, the higher Efficiency will be) Input overcurrent : Yes ( automatically when the input is more than 35A and power source Voltage does not rise) Short circuit : Yes (input 30A ) Wiring method: terminals (please use copper wire with high current) . Output power = input voltage * Maximum current (With input 12 V the maximum output power is 12 V * 30 A = 360 W) size: 130 x 84 x 52 mm/5.11 x 3.3 x 2.04 "

Key features

• Rigorous TestingThe Boost Converter has undergone quality assurance testing to ensure dependable and performance
• Comprehensive Reverse Input / Low Voltage / Input Over-current / Short Circuit

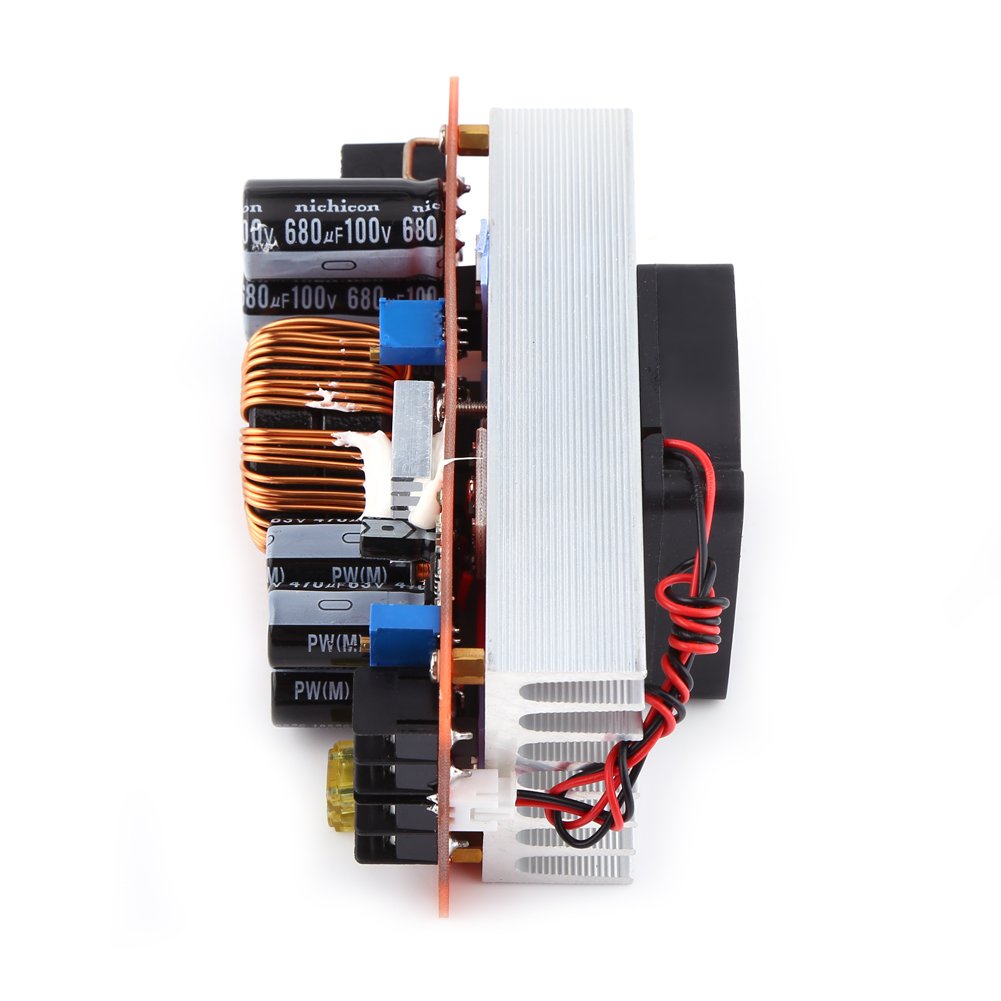

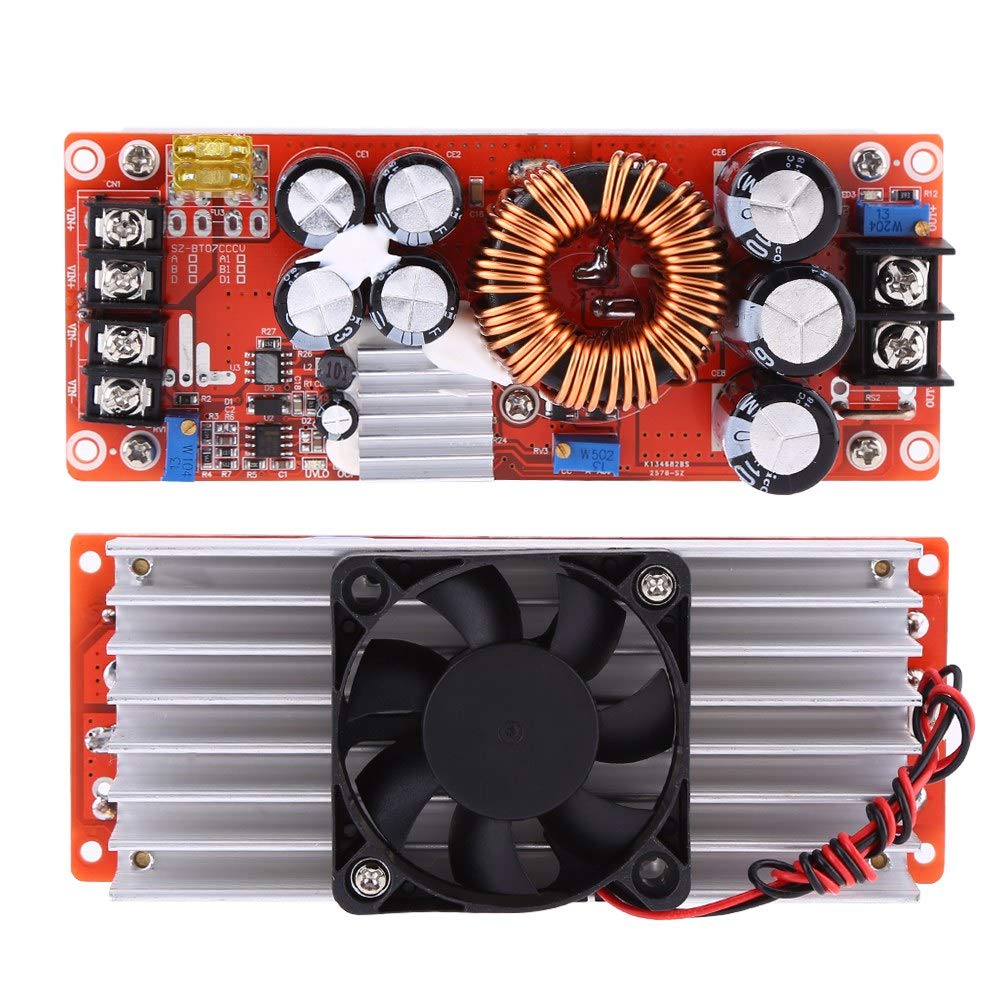

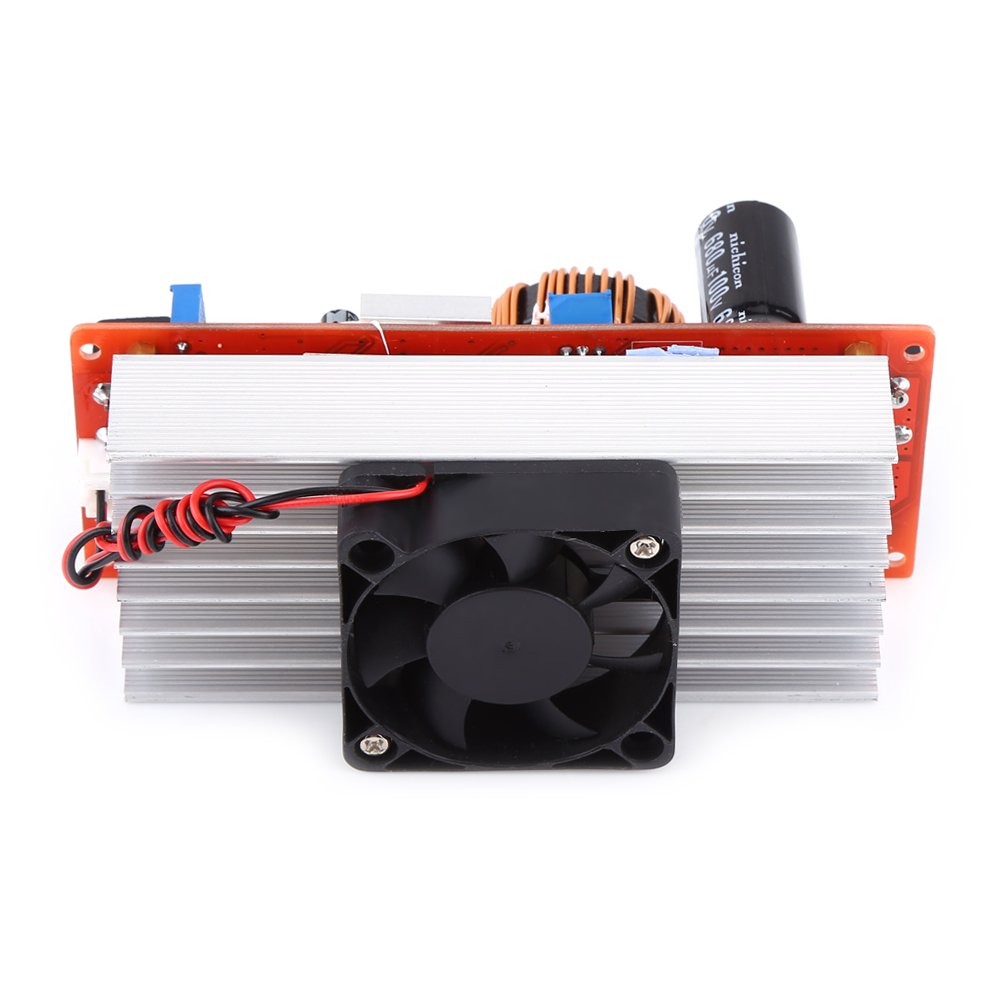

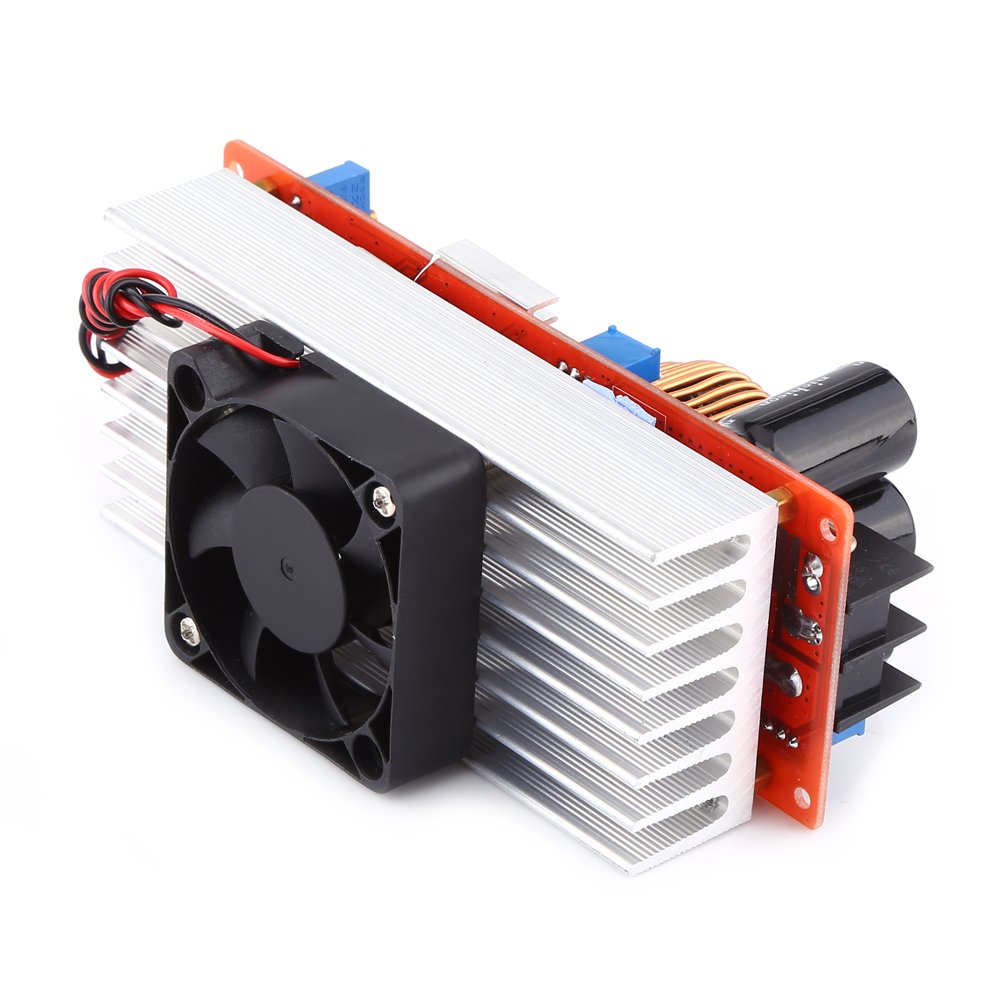

• Great Cooling AbilityThe Step-up power module is equipped with thickened heatsink and intelligent temperature control cooling fan, has better cooling capability.
• Application100V/210A low MOS with big power and current input, suitable for big power LED, motors.
• Parameters. input current: 30A(input voltage 10V to 30V)/ 25A(input voltage 31V to 60V); . output current: 20A; input voltage: DC10V to 60V; output voltage: 12V to 90V (adjustable, the default value is 19V)

Benefits

• Improves overall user experience
• Saves time with efficient operation
• Built for reliability and consistent output
• Easy integration into daily routines

Product details

1500W 30A DC-DC Boost Converter, Step-up Power Module Voltage Regulator Input Voltage DC10V-60V to 12V to 90V Output Voltage for Big Power LED, Motors is crafted with attention to technology, materials, and build quality to ensure long lasting performance and dependable use.

How to use

1. Unbox the product and check all components
2. Follow basic setup instructions
3. Use as intended according to requirements
4. Clean and store properly after use

Ready to buy

Add the 1500W 30A DC-DC Boost Converter, Step-up Power Module Voltage Regulator Input Voltage DC10V-60V to 12V to 90V Output Voltage for Big Power LED, Motors to your cart today and enjoy quality, performance, and value you can trust.
